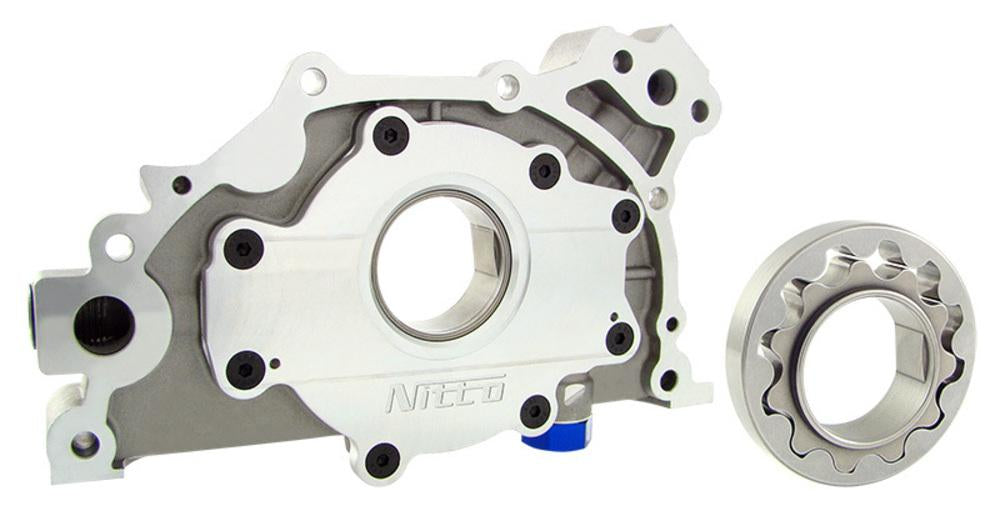

The NITTO RB series high volume oil pump is a high-quality performance aftermarket oil pump that will suit Nissan RB20, RB25, RB26 and RB30 engines.
Oil flow and pressure is dramatically increased over that of the factory oil pump which is critical in modified engines for the reliability of the lubrication system. Failure of this system is the “Achilles heel” of the Nissan RB series engine even on mildly tuned examples and accounts for a high percentage of ”RB” engine failures.
Factory based oil pumps are highly prone to oil pump gear failure in modified engines due mostly to the quality of the cheaper mass-produced material used in the manufacturing of the OEM style gears. Oil pump gear failure will result in inevitable engine damage. For this reason, EN Series billet steel material is utilised for the manufacture of NITTO RB series high volume oil pump gears which are far superior in strength and durability to that of both factory and its competitor’s oil pump gears.
| FLOW RATES (LITRES / MIN) | ||||
| ENGINE RPM | FACTORY PUMP | NITTO HIGH VOLUME PUMP | ||
| 750 | 4.6 | 6.5 | ||
| 2200 | 15.3 | 20.2 | ||
| 7000 | 46.5 | 64.8 | ||
| PRESSURE RELIEF VALUE (RELEASE PRESSURE) | ||||
| Dual Springs | 120 psi * | |||
| Outer Spring Only | 75 psi * | |||
| * Denotes Approximate Maximum Oil Pressure | ||||
| NITTO OIL PUMP GEAR VS FACTORY GEAR DIMENSIONS | ||||
| DIMENSION | FACTORY | NITTO | DIFFERENCE | |
| Outer Gear Diameter | 76.85MM | 81.50MM | 6% LARGER | |
| Outer Gear Width | 11.00MM | 14.35MM | 23% LARGER | |
| Tooth To Outer Wall Width | 2.55MM | 4.85MM | 47% LARGER | |
NITTO utilizes their precision CNC machined cast alloy outer housing and along with their already proven oil pump design NITTO has now released a new billet alloy backing plate allowing further stability to oil pressure and flow at high rpm levels by minimizing any possible flexing of the housing.
NITTO RB series oil pumps are supplied pre-inspected, blueprinted, assembled and cleaned to enable direct installation straight onto your engine and assure total confidence.
| MATCHING LIST | ||
| ENGINE MODEL | PART NUMBER | NOTES |
| RB30 DE / T | NIT-OIL-RB26 | REQUIRES NITTO CRANK COLLAR |
| RB26 DETT | NIT-OIL-RB26 | EARLY RB26 CRANKSHAFT REQUIRES NITTO CRANK COLLAR |
| RB25 DE / T | NIT-OIL-RB26 | REQUIRES NITTO CRANK COLLAR |
| RB20 DE / T | NIT-OIL-RB26 | REQUIRES NITTO CRANK COLLAR |
| NOTE: The addition of a Nitto crank collar is recommended on all OEM type “RB” Series Crankshafts where the engine is continually at high rpm power on, power off applications as would be experienced under circuit racing conditions. | ||
| RB SERIES | NIT-COL-RB | SEE ABOVE FOR APPLICATION |
