- Bearing Type: Ball Bearing.
- Cooling System:Oil & Water Cooled.
- Turbine Housing:Internally Wastegated 0.64a/r.

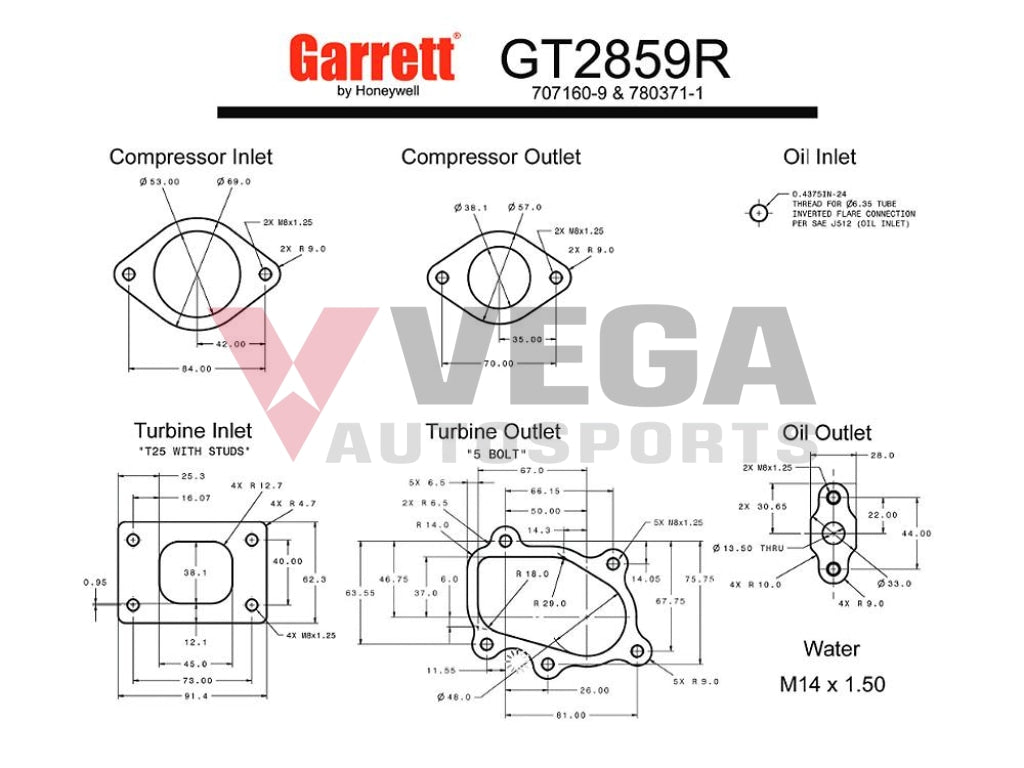

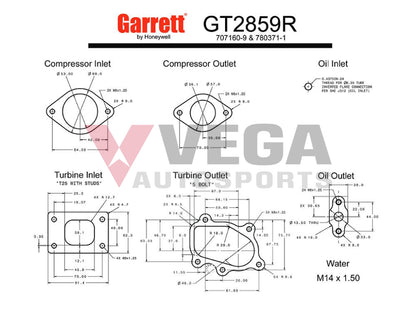

- Base Flange: T25 Nissan Skyline GTR Specific (base flange is threaded).

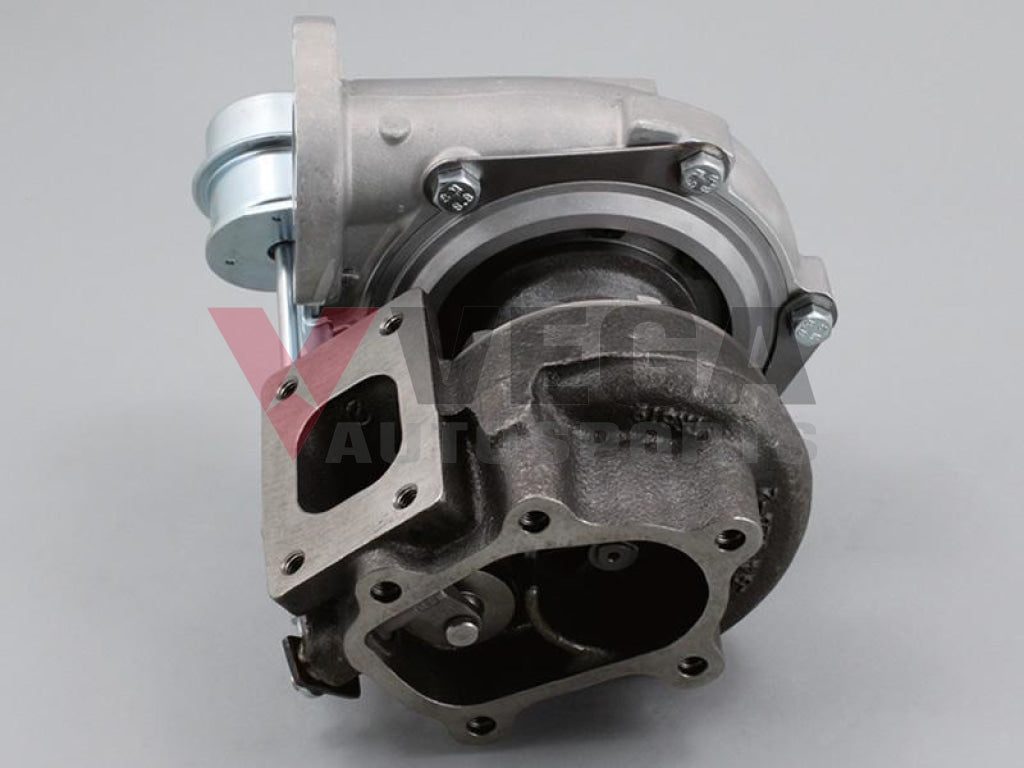

- Exhaust Outlet Flange: 5 Bolt Nissan Skyline GTR Specific.
- Horsepower: 150-310hp.
- Displacement: 1.8L - 3.0L.
- Previous Part Number: 707160-5009S / 707160-0009
Other Specifications:
- The Turbine Housing is cast from high nickle "Ni-Resist" material.
- The Turbine Wheel is cast from Inconnel material for extreme applications.
Product Notes:
- These Turbochargers are NOT supplied with an actuator. The factory actuators can be used, or there is an option on the drop down menu for aftermarket, higher pressure actuator assemblies.
- This Turbocharger is a direct bolt-on replacement for the Nissan Skyline GTR R32/R33/R34 RB26DETT.
- The Turbine Housing has a unique compact 5 bolt pattern, that is not interchangeable with the traditional 5 bolt CA18DET/SR20DET pattern.
